LaserCELL

LASER TOOL WITH SAFETY AND PERFORMANCE

Fully enclosed laser cutting and engraving system.

The LaserCELL’s Class 2 safety enclosure allows the system to be placed in high-traffic areas, such as busy factory floors and university classrooms. Access points are available at the front, back and each side of the machine, making part loading and maintenance simple and convenient.

Kern has redesigned the LaserCELL’s motion system, transforming it into its fastest and most productive machine to date. An improved downdraft vacuum table is built into the system allowing for consistent fume removal and material hold down over the entire 52″ x 50″ table. Lasers from 100 to 650 watts can be placed onto the LaserCELL system.

Download Brochure

Materials

	Cut	Mark
Acrylic
Mild Steel
Stainless Steel
Aluminum
Anodized Aluminum
Brass
Wood
Foam
Leather
Stone

Specifications

Laser Classification: Class 2 CO2 Laser

Laser Wattage: 100 – 650 watts

*Positioning Accuracy: +/- 0.002″/ft

Repeatability: +/- 0.0005″/ft

Work Area*: 52″ x 50″

Footprint (W x L x H): 74″ x 87″ x 53″

**Part Clearance: 3″

Electrical: 230v/1ph, 230v/3ph, 415v/3ph CE, 480v/3ph

*Mapped Table under controlled conditions

**Custom gantry heights by request.

Laser Classification: Class 2 CO2 Laser

Laser Wattage: 100 – 650 watts

*Positioning Accuracy: +/- 0.167mm/m

Repeatability: +/- 0.0417mm/m

Work Area*: 1320mm x 1270mm

Footprint (W x L x H): 1880mm x 2210mm x 1346mm

**Part Clearance: 76.2 mm

Electrical: 230v/1ph, 230v/3ph, 415v/3ph CE, 480v/3ph

*Mapped Table under controlled conditions

**Custom gantry heights by request.

LaserCELL CO2 Cutting and Engraving

As the fastest and most productive system in Kern’s product lineup, the LaserCELL is the perfect blend of safety and performance that companies are demanding from today’s laser processing equipment.

Standard Features

Super Pulsed CO2 Laser

100-650 watt CO2 lasers with Super Pulse technology, developed by Kern Technologies, excels in cutting dense and highly reflective materials.

Closed-Loop Chiller

A closed-loop chilling unit properly cools the laser source, ensuring a long laser lifetime and consistent cutting and engraving results.

Vacuum & Fume Exhaust

A blower package will remove fumes and small debris created during laser processing. An integrated downdraft table holds material flat on the table.

Computer Package

A high-performance computer and monitor is included with each system. An adjustable monitor arm is installed at the front corner of the machine.

Software Package

KCAM Laser Software and CorelDRAW Graphics Suite are linked together allowing over 100 file types to be used, including .DXF, .PDF and G-CODE.

Safety Features

A Class 2 enclosure with interlocked access points ensure a safe working environment. Multiple emergency stop buttons are installed on the machinery.

HyperDual Motion

Kern’s next generation HyperDual motion package features a rack and pinion design driven by powerful servo motors at each side of the table.

Training Program

A 2 day training course at Kern's factory is included with each system. Kern's knowledgeable staff will cover safety, maintenance, operation and applications.

Request a Quote

Request A Quote

Click, drag, and zoom for a 360 view of the LaserCELL.

Optional packages

Metal Cutting

Kern’s CO2 laser systems can be equipped with innovative metal cutting technology. The metal cutting option allows for accurate cutting of sheet metals like stainless steel, mild steel, aluminum, and brass.

Air Assist

High Pressure assist gas, such as oxygen, CDA(clean dry air) or nitrogen, is injected through the metal cutting nozzle. The result is a dross free cut edge that requires little to no deburring.

Auto-Focusing

As the cutting process begins, the height follower tracks the surface of the metal and adjust the nozzle in the z-axis maintaining a constant focus point while the metal is being cut.

To learn more about the Metal Cutting, please watch this video and visit our Metal Cutting page.

K-Vision Camera

The K-Vision Camera package is a fully integrated hardware and software solution allowing fast and accurate cutting of printed materials.

This process starts with a nozzle mounted camera which automatically measures the dimensions between registration marks on printed materials. The system then uses these measurements and the registration marks of the original cutting file to compensate for distortion and rotation. The slight adjustments that k-vision makes to the cutting file results in a perfectly matched cutout in the material being processed. The entire camera system can be easily removed and stored in a protective box when not in use.

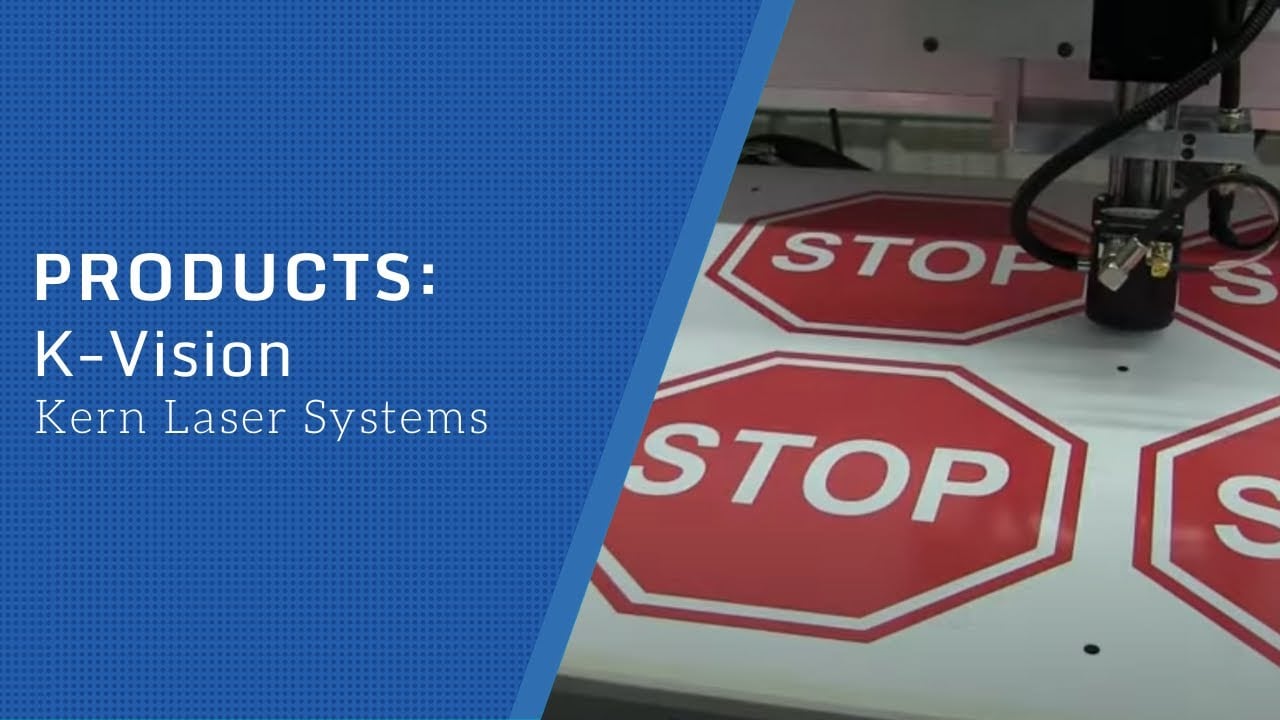

To learn more about the K-Vision Camera package please watch this video and visit our K-Vision Camera page.

Pipe Rotary Package

A Pipe Rotary attachment can be added to Kern’s laser systems for processing of pipes, rods and other cylindrical items. The rotary device is driven by a high-resolution servo motor, resulting in smooth and accurate cutting performance.

Two rotary styles are available; the Chuck Rotary and Wheel Rotary. Kern’s laser systems can be equipped with one or both style rotaries.

To learn more about the Pipe Rotary package, please watch this video and visit our Pipe Rotary page.

Fume Extraction

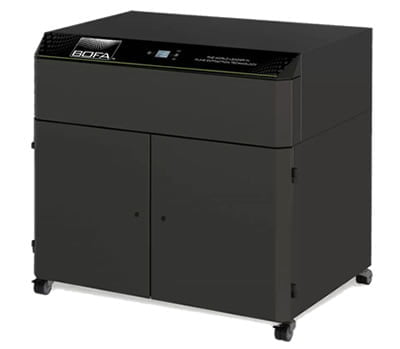

A Fume Extractor can be connected to Kern’s laser systems to remove fumes and small debris creating during laser processing. Instead of ducting the fumes to the outside, the fume extractor cleans the fumes with a series of filters and recycles the air back into the room.

An inline Spark Arrestor can be added for applications which involve metal cutting. The spark arrestor is designed to dramatically reduce the amount of sparks that enter the fume extraction duct.

To learn more about Fume Extraction packages, please review our “Let’s Talk Fumes” section on our Laser Safety page

ADDITIONAL FEATURES

UL Certified Electrical Panel

A UL certified electrical panel is placed on each laser system which turns on and shuts down components of the laser system. CUL and CE approved machines are available by request.

LED Lights

Ultra-bright LED Lights span the top of the enclosures interior, resulting in a well-lit processing work area. These lights make it easy to see the status of the current job being processed.

Steel Chassis

The LaserCELL is built around a precision-machined, heavy-duty steel weldment as the machine base. The one-piece weldment allows for the machine to arrive fully assembled, greatly reducing installation time.

Convenient Access

The LaserCELL features sliding doors at the front and rear of the machine. Sliding side access doors are installed on both sides. These access points ensures convenient loading and unloading of materials.

Honeycomb Bed

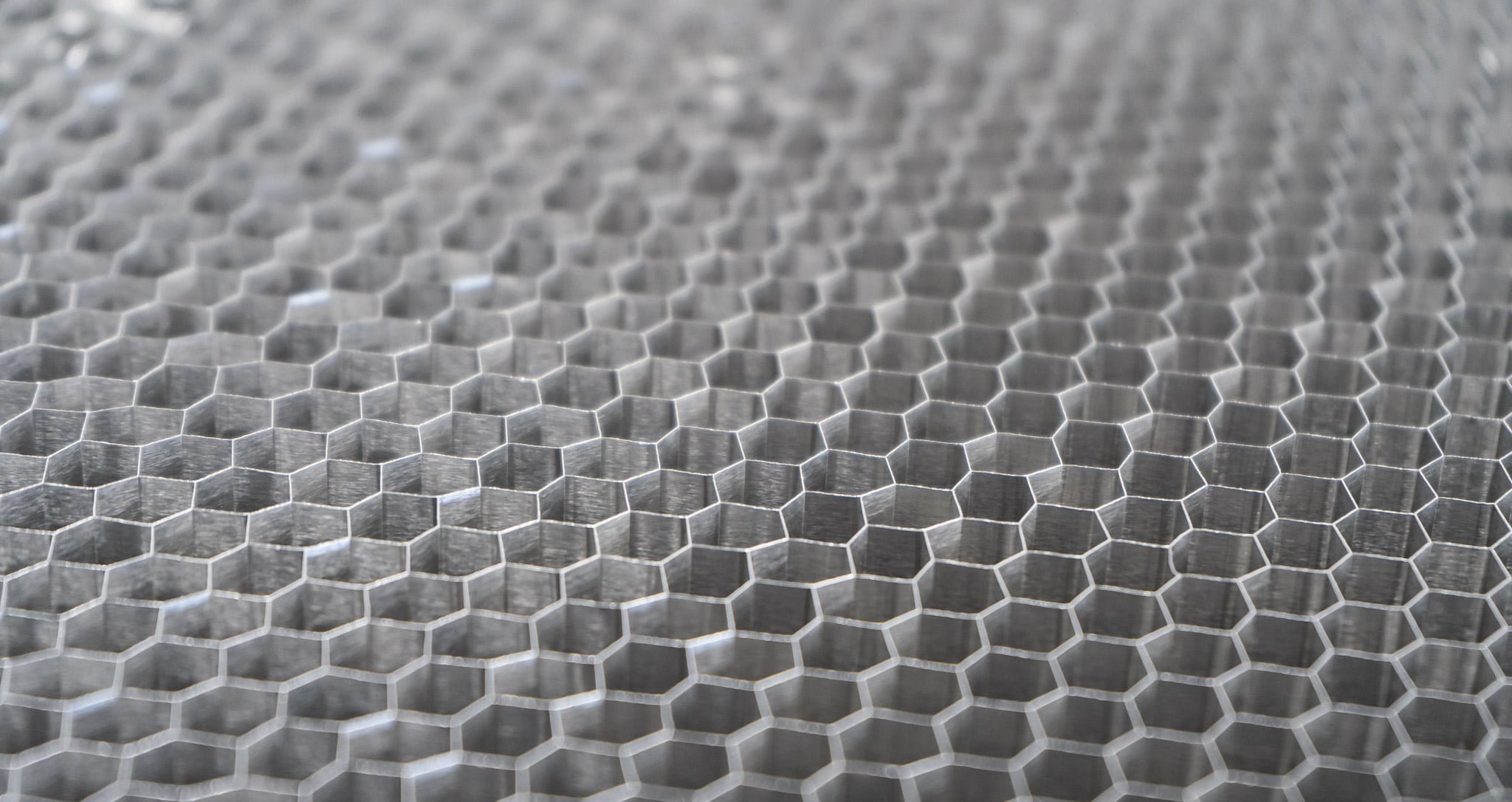

A durable aluminum table structure is inserted into the bed, maintaining a flat work surface. The honeycomb cells allow for a down draft table and also ducting smoke and debris into the bottom table chamber.

2.5” S-FOCUS Lens Assembly

A great all-around processing head equipped with a high-quality optic. The assembly features an assist air which pushes air out of the nozzle, protecting the lens from smoke and debris.

ABOUT KCAM LASER SOFTWARE

KCAM® is a laser cutting and engraving software package developed by Kern’s in-house software development team. Through years of research and customer feedback, KCAM has developed into an industry-leading laser control software.

KCAM can be linked with popular design softwares such as CorelDRAW®, AutoCAD® and Adobe Illustrator®, allowing for hundreds of file types to be processed.A convenient user interface provides operators with complete control of the laser systems cutting and engraving parameters. Kern’s customers have access to the latest KCAM software upgrades from our website.

Whether you’re cutting thick acrylic or a thin delicate textile, be ensured that KCAM will provide you with the laser control required for quick and accurate results.

Customized Pierce Settings. The dwell time, laser power, frequency, focus point and air flow can be set independently from your normal cut settings. This feature ensures metals are cut clean with minimal to no dross.

Air Control. Compressed shop air, oxygen or nitrogen can be hooked up to the laser system for optimal processing results on a variety of laserable materials.

Vector Path Speed Control. KCAM mimics a race car by slowing the cutting speed into sharp corners and accelerating out of them. The result is smooth, consistent cutting with the tap of your mouse.

Cut Optimizer. Decrease your programming time by letting KCAM automatically determine the fastest cut order for your most complicated designs.

Time Estimator. Provide accurate pricing to your customers by knowing the amount of laser processing time before the product even makes it to the laser bed.

Tool Offset. A simple inside/outside offset can be set to compensate for the laser beam kerf. This results in precisely sized parts without modification of your original part drawings.

Request a Demo

Request A Demo

Leasing & Tax Incentives

Kern has teamed up with Geneva Capital to bring you great new finance options. Financing makes it easy to get the equipment you need, while experiencing the benefits and tax savings of leasing.

Financing

Learn More

Section 179 Deduction

Learn More

Case Study - Laser Etch Technologies, Buffalo, MN

Owner Tim Pawelk of “Laser Etch Technologies” roots run deep with Kern Laser Systems. A customer since 1999, Laser Etch currently uses four Kern lasers that have been instrumental in achieving worldwide attention. Such projects included teaming up with renowned Tibetan artist Rinchen Dorgee. Dorgee was instrumental in the creation of the throne the Dalai Lama used during his visit to Minneapolis/St. Paul in May of 2001. The throne was also recently used for His Holiness when he visited Minneapolis this year to celebrate the Tibetan New Year.

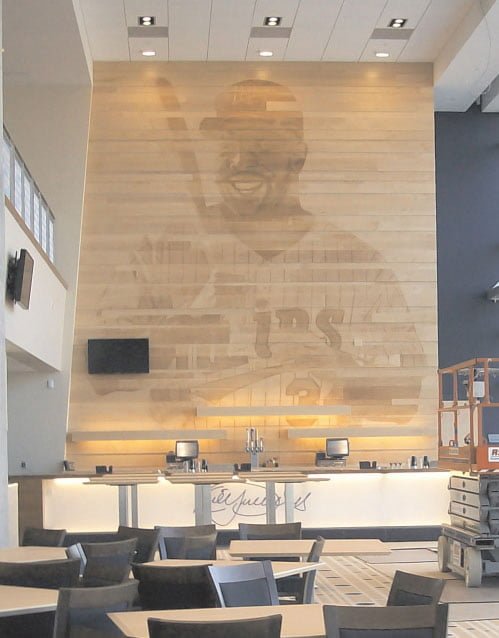

Around Minnesota, Tim has also done amazing work. Most notably, his wood etching and engraving can be seen in the Legends Club area located at Target Field, the home of the Minnesota Twins.

Baseball fans would recognize Pawelk’s grand slam work located at Target Field, home of the Minnesota Twins. This creative wonder that includes both etching and engraving can be seen in the Legends Club and press box areas of the stadium.

Pawelk allows that the Kern Laser Systems has provided him with the needed tools to think outside the box and grow his business through the wide range of capabilities found in a Kern laser.

He has been able to do a variety of projects with his Kern Lasers that he’s sure he wouldn’t be able to do with the use of some of the competitors’ laser systems. Some of his projects have drawn attention not only in the United States, but also worldwide. In 2001, Tim Pawlek and Laser Etch teamed up with renowned Tibetan artist Rinchen Dorgee. Rinchen was the main artist involved with the creating of the Dalai Lama’s throne his visit to the Twin Cities in May of 2001. The throne was recently used for his holiness when he visited Minneapolis this year to celebrate the Tibetan New Year. (Insert pictures of the throne)

To hear more about Laser Etch’s projects, as well as their experience with Kern Laser Systems, click on our video link for Laser Etch’s exclusive customer testimonial.
